- Autonomy pack: 3 sets of batteries TB60 (6 batteries) and 1 charging case BS60 included
- Warning: this pack does not include a camera. These must be ordered separately
- Battery life up to 55 minutes (without payload)
- Real-time video streaming up to 8 km
- Automatic waypoint navigation system
- Data security, AES-256 standard data encryption
Complete description Matrice 300RTK - extra batteries

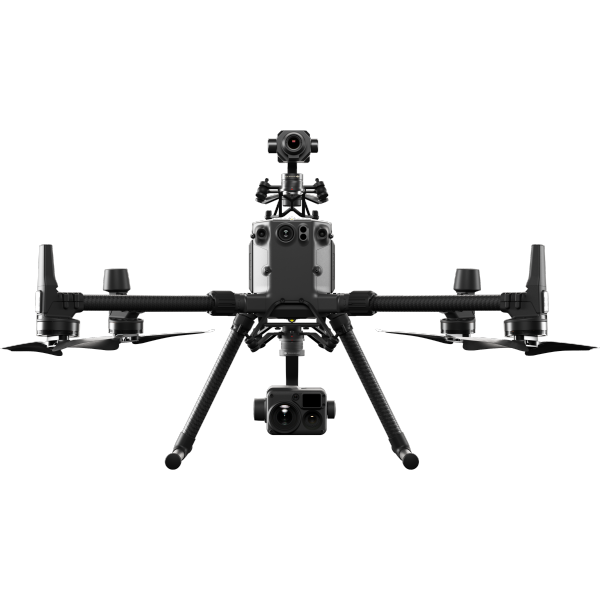

Designed for professional use, the Matrice 300RTK offers high performance and reliability.
Particularly suited to surveillance and security missions, this drone is capable of carrying dedicated sensors up to 2.7kg.
With its reduced weight and size, it can be easily transported.
With a strong autonomy and a large carrying capacity, it is able to carry sensors dedicated to surveillance and security.

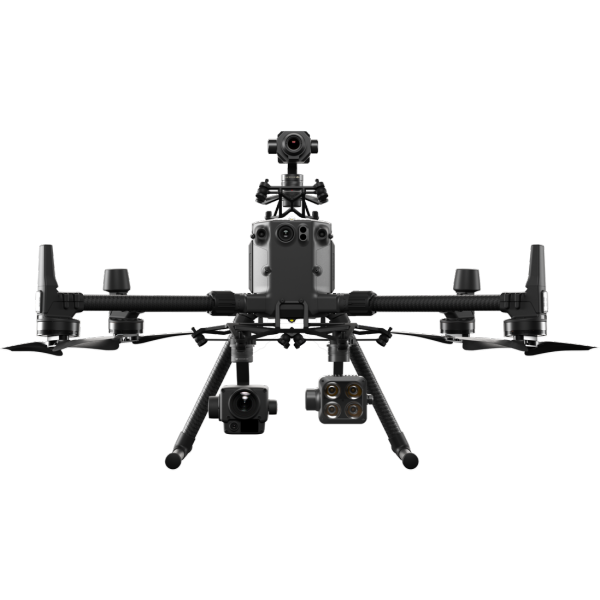

Capable of carrying up to three pods including the Zenmuse H20 and H20T as well as other models such as the Z30, XT2, XT S and X30TL (up to 2.7 kgs of maximum weight).
- The H20 camera has for example 3 different sensors:
- A wide angle camera to check movements over a large area,
- A zoom camera with a hybrid optical zoom x23 (maximum zoom x200),
- A laser rangefinder to measure the distance of an object with an accuracy of 0.2m
Equipped with TB60 batteries, it will guarantee up to 55 minutes of autonomy (empty) or 45 minutes with a Zenmuse H20 (as an example). The Matrice 300 RTK is one of the most reliable drones on the market thanks to the redundancy of its components as well as the positioning and obstacle detection in 6 directions.
AI features such as Smart Pin & Track allow for a variety of actions, especially in the area of security. It is possible to track subjects or moving objects while transmitting its coordinates to several operators on the ground.
Technical specifications Matrice 300RTK - extra batteries
DRONE | |
Flight time | 45 minutes (with H20 camera) |
Wheelbase | 895 mm |
Weight (with batteries) | 6,3 kg (with single bottom gimbal) |
Maximum Take Off Weight (MTOW) | 9 kg |
Application | DJI Pilot 2 |
GNSS | GPS, GLONASS, Galileo, BeiDou |
Operating frequency | 2,4000 - 2,4835 GHz; 5,725 - 5,850 GHz |
Capacité RTK | Yes |
SÉCURITÉ | |
IP Rating | IP45 |
Sensing system | Multidirectionnal |
Altitude / flight ceiling | 7000 m (estimated) |
Operating Temperature | De -20 à +50°C |
Max Wind Speed Resistance | 54 km (15m/s) |
Max Speed | 82.8km/h (23m/s) |
Internal storage | NC |
External storage | NC |
CAMÉRA | |
Sensor | Zoom camera: 1/1.8" 4MP CMOS; 1/2.7" 2MP CMOS wide angle sensor |
Focal length | 29mm wide angle starlight sensor; 53mm wide angle thermal sensor |
Zoom | 23x optical zoom, 128x total zoom |
Video resolution | NC |
Video format | MP4 |
Photo format | JPEG |
Picture resolution | NC |
Camera mode | NC |
THERMAL CAMERA | |
Sensor resolution | 640x512 @30Hz |
Zoom (thermal sensor) | up to x8 |
Picture format | R-JPEG (16 bit) |
EO/ IR simultaneous video return | Yes |
RANGEFINDER | |
Wavelength | 905nm |
Measuring range | 3 - 1 200m (vertical surface with ≥ 12m diameter and 20% reflectance) |
Measuring accuracy | ± (0,2 m + Dx0,15%) où D est la distance jusqu’à une surface verticale |
CONTROLLER | |
Type | Lipo 12S Smart Controller Enterprise |
Frequencies | 2.400 - 2.483 GHz ; 5.725 - 5.850 GHz |
Radio range | 8 km (CE) / 15 km (FCC) |
Video output | USB |
Video return resolution | 1080p, luminosité 1200cd/m² |
BATTERY | |
Capacity | 5935 mAh |
Voltage | 52.8 V |
Weight | 1,35 kg |
Self-heating capacity | Yes |
Reloading time | Avec station de charge BS60 : environ 60 minutes pour deux batteries TB60 (avec entrée 220V) |
Airline compatible | No |
Product content Matrice 300RTK - extra batteries
- 1 x DJI Matrice 300 RTK
- 1 x DJI Smart Controller Enterprise
- 1 x USB charger
- 1 x USB-Type C cable
- 1 x Battery WB37 (radio control)
- 6 x TB60 batteries (drone)
- 1 x BS60 charging case for TB60 and WB37 batteries
- 2 x 2110 propellers (CW)
- 2 x 2110 counterclockwise propellers (CCW)
- 2 x Landing gear
- 1 x Pair of stick covers
- 2 x Propeller brackets
- 4 x Dampers for sticks
- 1 x USB to USB cable
- 1 x Calibration chart
- 1 x Carrying case
- 1 x Harness for radio control
- 1 x Set of rubber port covers
- 1 x M1.6 and M3 screw set with keys
- 1 x Power cable
- 24 months warranty
Key benefits Matrice 300RTK - extra batteries
Complete with more accessories Related to Matrice 300RTK - extra batteries
Zenmuse H20N
DJI Smart Controller Enterprise
Zenmuse H20T
Zenmuse H20
WB37 battery
TB60 intelligent flight battery
Customized drone pack Let's build your pack together
MILTON's teams are trained to meet your needs with customized solutions. Performance, technologies, payloads, training, maintenance: you can determine with our teams the specifications of the offer that will perfectly meet your needs and adapt to your procedures.
