Trouver une pièce de rechange ?MILTON se charge de l'entretien de votre vecteur aérien !
- Autonomie 30 MIN (WITH A PAYLOAD OF 15 KG)
- Carrying capacity 35 KG
- Poids maximum au décollage 60 KG
Key benefits SKY CARRIER
- Very high lifting capacity
- High stability drone
- Possibility of carrying different types of sensors for mission versatility
- Powerful, high-performance power system
Performance SKY CARRIER

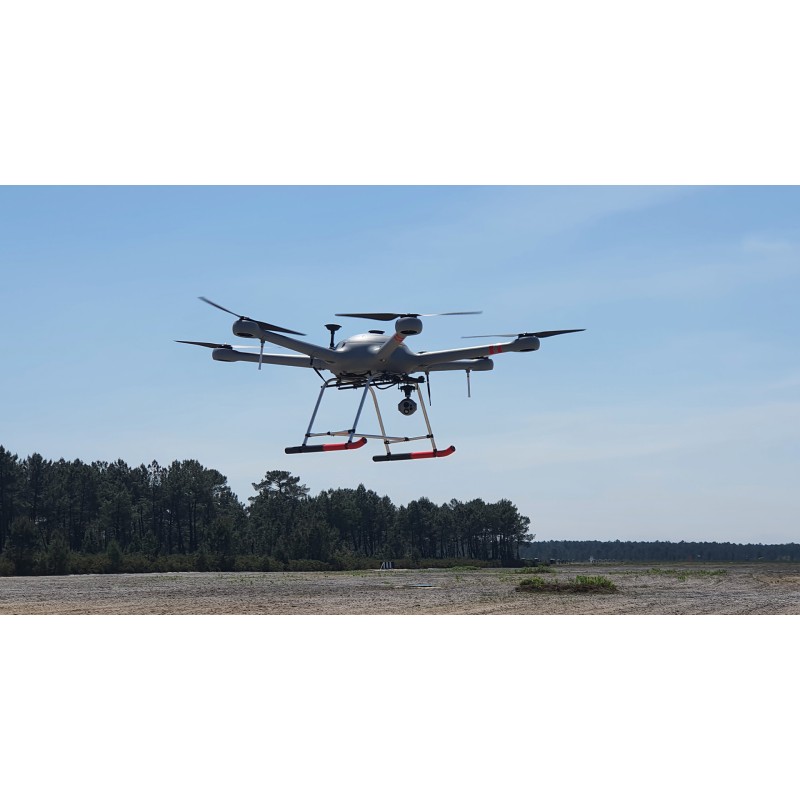

The SKY CARRIER drone is a versatile electrically powered drone that can carry heavy payloads up to 35kg, for a maximum take-off weight of 60kg. Thanks to its robust design (IP 43) and its closed fuselage structure, the drone is rain resistant (maximum tilt of 60°) and is protected against foreign objects larger than 1 mm in diameter. All data links implemented by the system are AES-256 encrypted and no internet connection is required to operate the system.
Missions SKY CARRIER
- Independent observation of large areas
- Analyze a situation before and during an operation
- Clearly identify a target thanks to the onboard x30 optical zoom
- Carry out ISR missions in hostile environments (terrain, conflict zones, etc.)
- Option: additional transport case positioned under the drone to carry an additional payload, emergency equipment...
- Discreet and permanent presence in the air
- Support for the planning and execution of military operations
- Real-time visual (LoS) and non visual (BLoS) flights to maximize performance and minimize operational costs
- Real-time secure video transmission
- Target tracking and evidence gathering in complex environments
- Option: additional transport case positioned under the drone to carry additional payload, emergency equipment...
Pack SKY CARRIER
SKY CARRIER
- Able to carry up to 35kg payload
- Carbon fiber structure: light and robust
- 42 minutes of autonomy with a 10kg payload
- 30 minutes of autonomy with a payload of 20kg
- 19 minutes of autonomy with a payload of 35kg
- Deployment in less than 10 minutes
- Withstands winds up to 60km/h

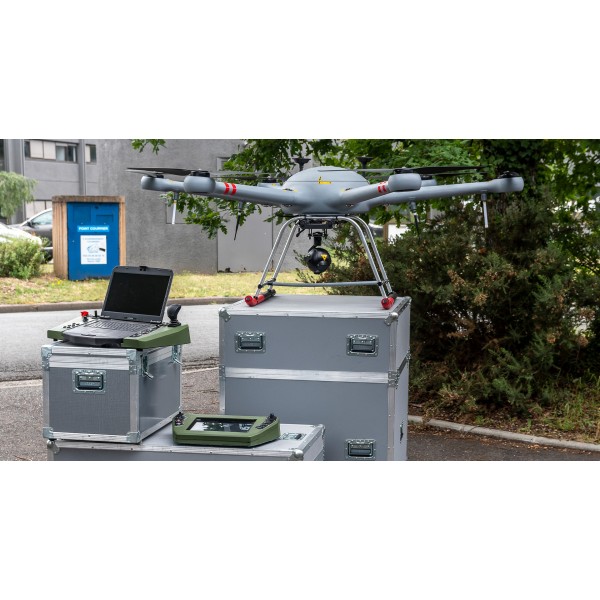

GROUND CONTROL STATION (GCS)
- Set of MILTON ground stations (GCS) for the implementation and control of the UAV and its payload
- Drone GCS : rugged console with physical controls and a military-grade Getac laptop
- Payload GCS : control of flight modes and payload operation
- Preparation and download of the mission
- Pre- and post-flight inspection
- Real-time telemetry information of the UAV and its payload
- Able to receive, record, store and read payload information with real-time display
- Recording of target coordinates
- Flight mission control of the UAV and its payload
Antenna pack
- Specially designed to ensure long distance data transmission
- The antenna follows the orientation of the drone at all times, greatly improving transmissions
- Increased signal and communication distance
- Adapted frequency range
- Quick and easy assembly and disassembly
- Packaged in a carrying case with wheels
Battery and charger
- High capacity Li-ion batteries (22,000 to 30,000mAh depending on the model)
- Plug&Click battery pack
- Easy insertion and removal
- Multiple charger included with charging, balancing and storage functions
Payloads
- Drone compatible with a wide variety of payloads to fit your operational needs
- EO/IR cameras with intelligent functions (30x optical zoom, EO/IR object tracking, laser rangefinder...)
- Load carrying case
- Speaker and projector
- Cartridge release device (DLC)
- Autonomous mobile network scanner and IMSI Catcher (governmental use)
- Ability to integrate or develop your own payload upon request (government use)
Transport cases
- Rigid transport case with custom-made cushioning for the transport of the drone
- Rigid transport case with custom-made cushioning for the transport of accessories
- Easy transport thanks to the integrated wheels and handles (including a telescopic handle)
Training
- Training in the implementation of the drone and its operational use
- MILTON instructors with several years of experience (UAV and aircraft)
- Preparation and realization of operational and tactical scenarios, adapted to your needs
- Night flights included
- Training given in our training center or at the location of your choice (France and international)
- Private and confidential MILTON training center located in Bordeaux-Mérignac (33)
- Modern infrastructures and close to the flight areas
Training courses are modular to allow maximum targeting of knowledge and skills within your organization.
Supported payloads SKY CARRIER
