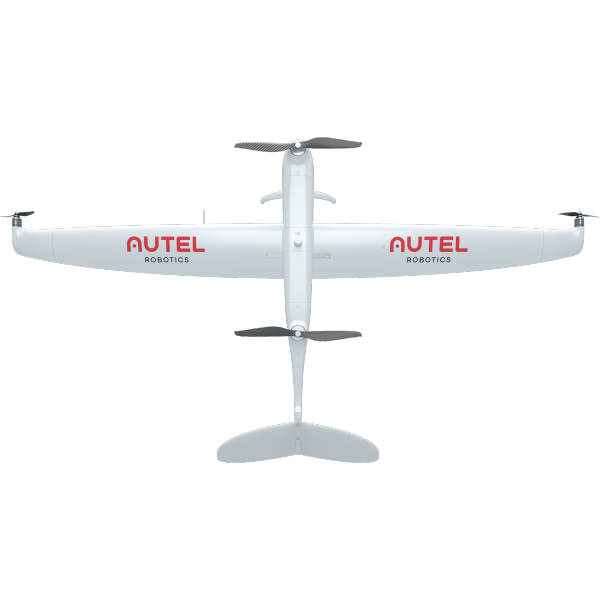

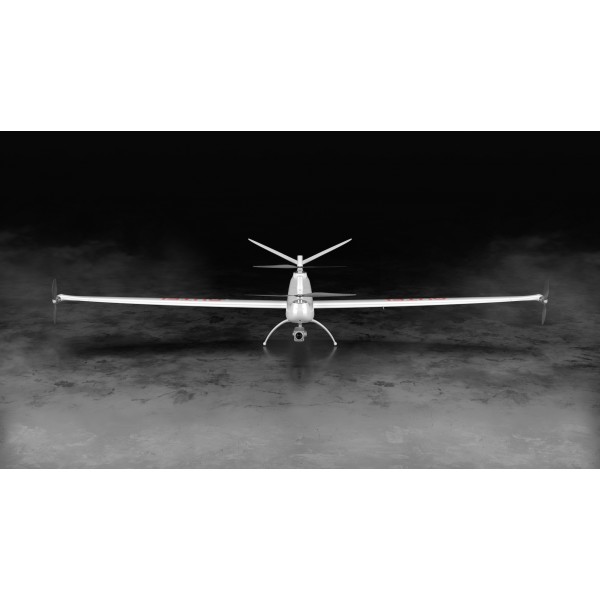

The DragonFish is a VTOL (Vertical Take-Off and Landing) drone with a comfortable flight time of 120 minutes.
Thanks to its modular fuselage, the DragonFish UAV can be assembled and ready to fly in less than 5 minutes, requiring only one operator. The drone is adapted to unexpected missions and has no time loss with its system that starts in 5 seconds, so the time of the mission is optimized. Its storage is practical and just as fast with its detachable propellers.
The DragonFish can carry up to 1.5 kg of payloads. These are quickly interchangeable to meet your needs.
The dual and triple sensor cameras are adapted to the DragonFish drone and offer a very high image quality (48 MP) and a x20 optical zoom. The triple sensor camera allows night missions to be carried out thanks to the 640 pixel radiometric thermal sensor. A multispectral option is also available.
The DragonFish offers multiple functionalities such as automatic flight planning, target tracking (fast or adaptive tracking) or the definition of points of interest to optimize observation. All these features are accessible from the drone's radio control and the Autel Voyager piloting software.
In order to guarantee the safety and discretion of the drone during the flight, the drone will be able to adapt its altitude to the reliefs encountered during the tracking of objects. Resistant to winds of 50km/h, the drone is nevertheless able to automatically switch to multi-rotor mode in case of extreme weather conditions that could affect the stability of the device. Finally, the two RTK modules allow for flawless centimeter accuracy.
The supplied ground station features a high-resolution (2048x1536) TFT-LCD display with 1000nits for optimal visibility. The screen of the radio control allows you to view the images of the drone at a distance of up to 30km. The ground station has a battery life of 4.5 hours and is water and dust resistant.
The standard Dragonfish is compatible with the Z2, T3, T3H, L20T and L50T cameras.
| DRONE | |
| Flight time | 120 minutes |
| Weight (with batteries) | 14,5 kg |
| Maximum Take Off Weight (MTOW) | 17 kg |
| Application | Autel Voyager |
| GNSS | GPS, GLONASS, BeiDou, Galileo |
| Operating frequency | 5.725 - 5.755 GHz |
| Capacité RTK | Yes |
| SÉCURITÉ | |
| IP Rating | IP 43 |
| Sensing system | No |
| Altitude / flight ceiling | 6000 m |
| Operating Temperature | -20°C ~ 50°C |
| Max Wind Speed Resistance | Fixed wing mode : 54 km/h (15 m/s) ||| Multirotor mode : 43,2 km/h (12 m/s) |
| Max Speed | 108 km/h (30 m/s) |
| Internal storage | ROM 256GB + scalable (TF) |
| CAMÉRA | L20T |
| Sensor | 1/2.5'' CMOS 8MP |
| Focal length | 4,4 mm |
| Zoom | x20 optical, x12 digital |
| Video resolution | 3840x2160@30fps / 1920x1080@30fps |
| Video format | MP4 |
| Photo format | JPEG |
| Picture resolution | 3840x2160 |
| THERMAL CAMERA | |
| Sensor resolution | 640x512 @30Hz |
| Zoom (thermal sensor) | x1 à x8 digital |
| Picture format | JPEG+IRG / TIFF |
| EO/ IR simultaneous video return | Yes |
| RANGEFINDER | |
| Wavelength | 905 nm |
| Measuring range | 10-1200 m |
| Measuring accuracy | ±1m à l'intérieur de 400m ; ±0,4% à l'extérieur de 400m |
| CONTROLLER | |
| Type | Autel GCS LiPo |
| Frequencies | 5.725 - 5.755 GHz |
| Radio range | 5 km (CE) / 10 km (FCC) |
| Video output | USB Ligting / USB-c |
| Video return resolution | |
| BATTERY | |
| Capacity | 8200 mAh |
| Voltage | 11,4 V |
| Weight | 1,3 kg 3,6 km |
| Self-heating capacity | Yes |
| Reloading time | 120 minutes |
| Airline compatible | No |
